Auto Diagram

Built with ❤️ by @artreimus from Ylang Labs

Transform your ideas into beautiful diagrams with the power of AI. Describe any process, architecture, or workflow in natural language and watch it come to life as stunning Mermaid diagrams.

📸 Screenshots

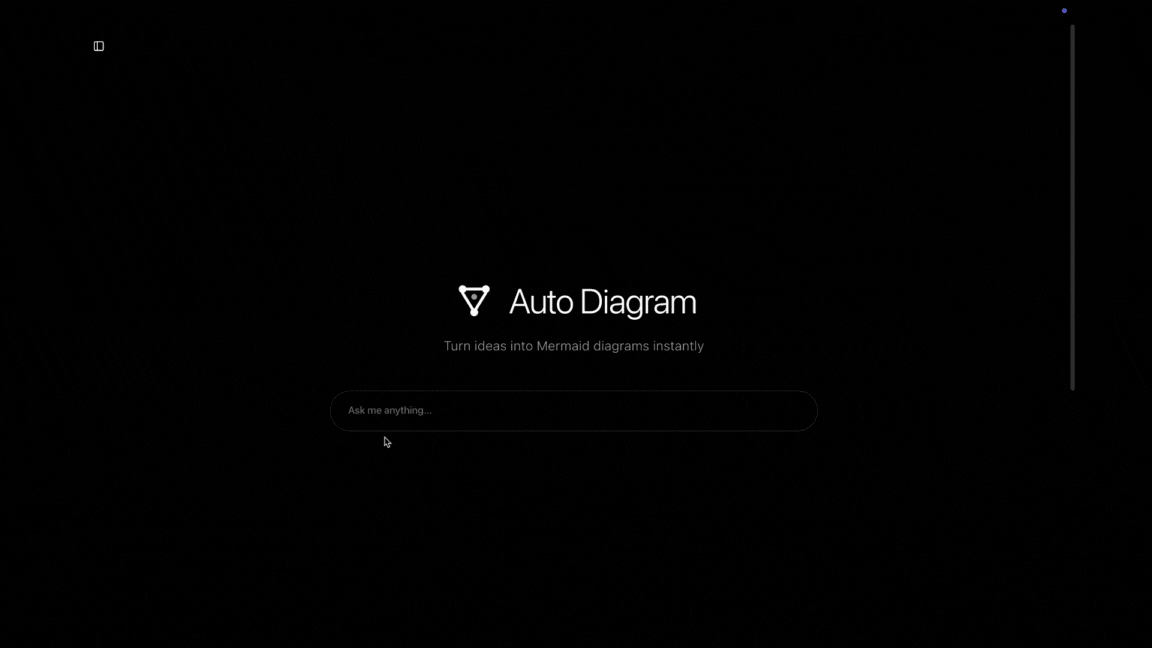

Main Interface

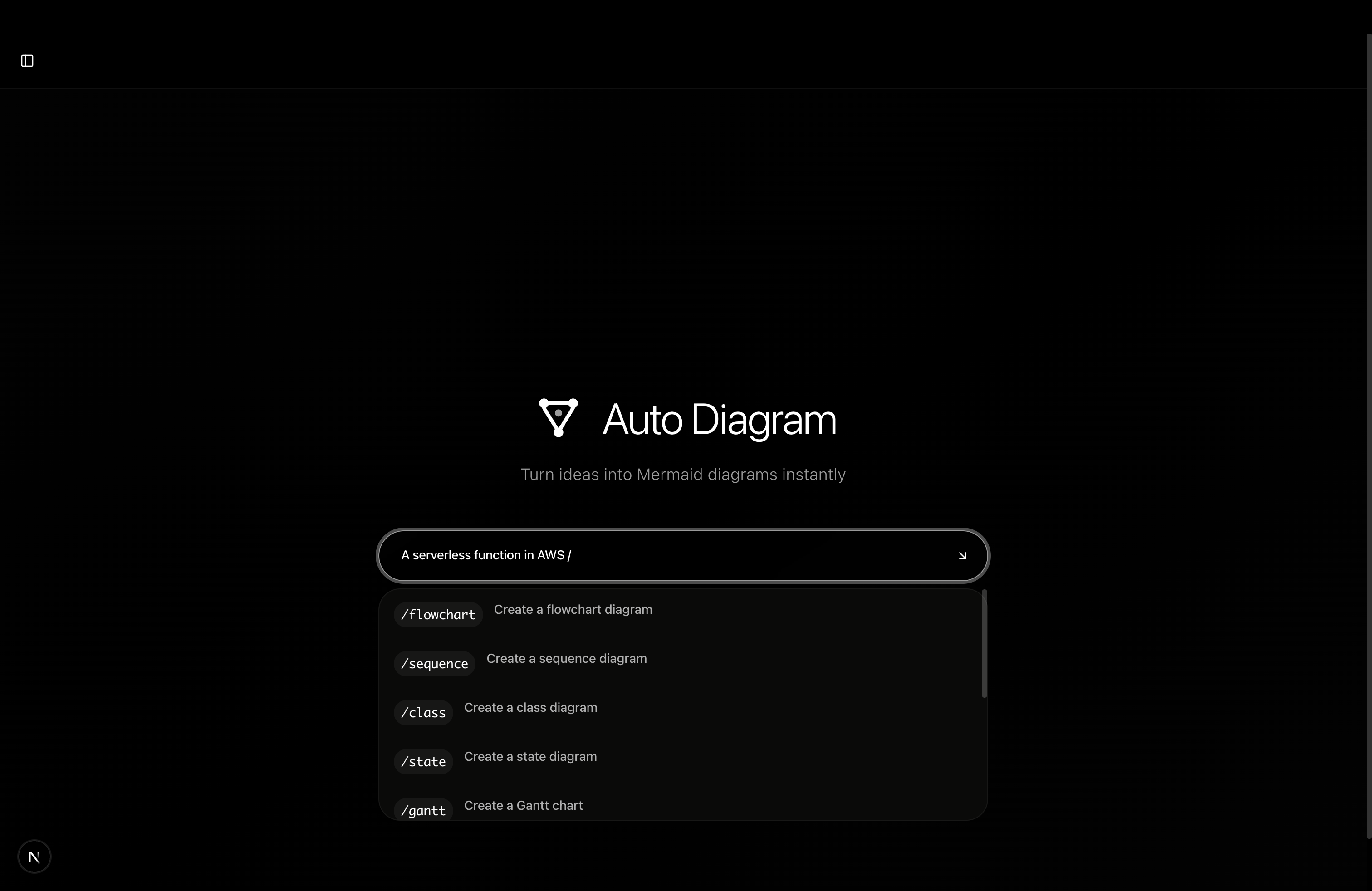

Command Suggestions

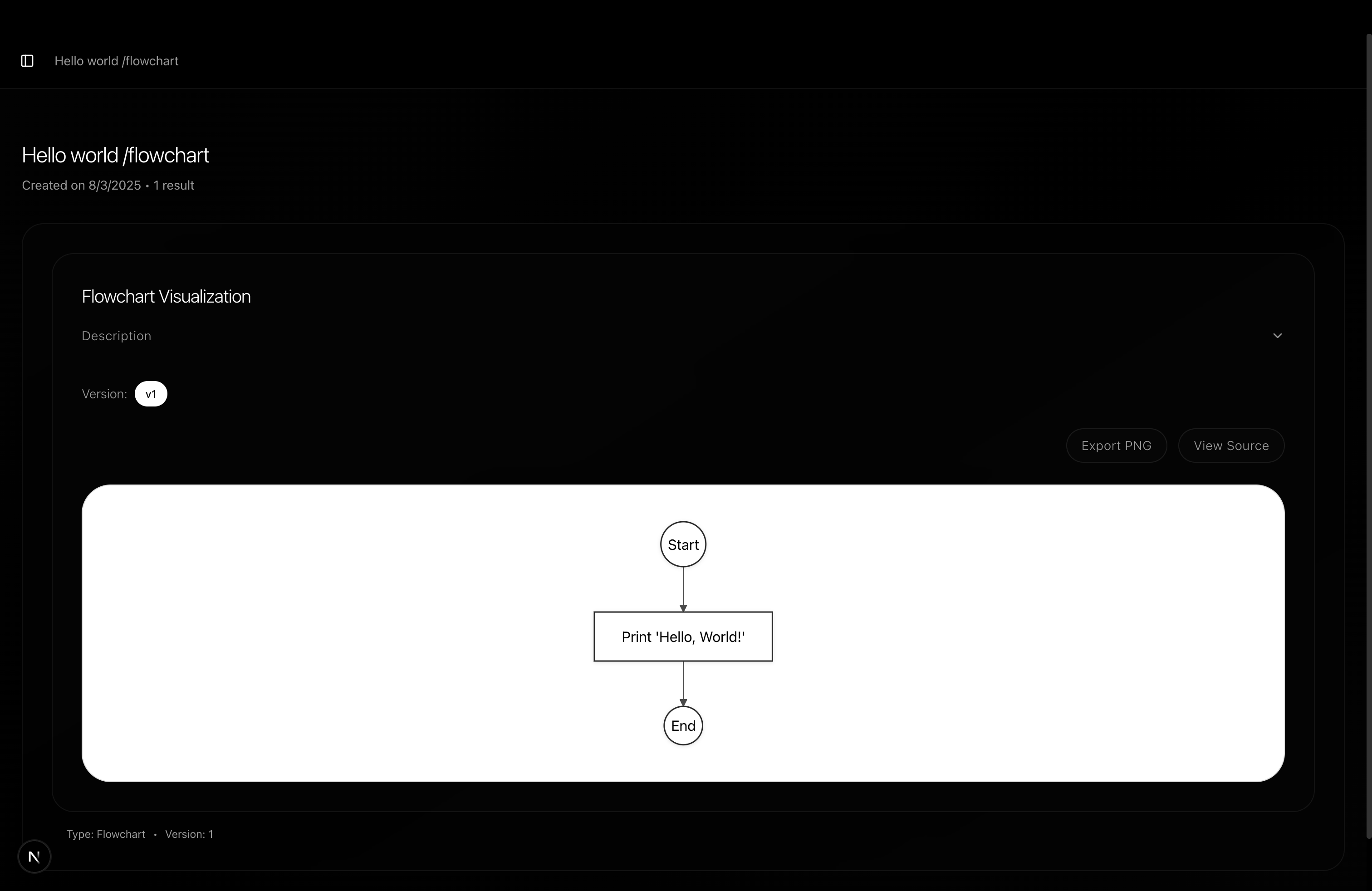

Generated Diagrams

✨ Features

• 🤖 AI-Powered Diagramming: Describe complex systems, workflows, or ideas in natural language
• 📊 Multi-Chart Generation: Intelligent AI planner creates multiple related diagrams from a single prompt
• ⚡ Chart Command Shortcuts: Type /flowchart, /sequence, /class and more for quick chart type selection
• 🔄 AI Mermaid Syntax Fix: Use AI to fix invalid Mermaid syntax for improved reliability
• 💾 Session Management: Automatic save to local storage with shareable unique URLs
• 🎨 Polished UI: Beautiful, minimalist interface with fluid animations powered by Framer Motion
• 🔧 Multi-Provider Support: Choose from Google Gemini, OpenRouter, Anthropic Claude, or OpenAI
• 🌐 Web Search Integration: Enhanced diagram generation with EXA API web search capabilities
• 📱 Responsive Design: Works seamlessly on desktop and mobile devices

🚀 Getting Started

Prerequisites

• Node.js (version 20.x or higher)
• At least one AI provider API key (see configuration below)

Installation

1. Clone the repository

   git clone https://github.com/artreimus/auto-diagram.git
   cd auto-diagram


2. Install dependencies

   npm install


3. Set up environment variables

   cp .env.example .env.local


4. Configure your API keys (edit .env.local)

   # Choose your preferred AI provider (at least one required)
   AI_PROVIDER=google  # Options: google, openrouter, anthropic, openai

   # API Keys (at least one required)
   GOOGLE_GENERATIVE_AI_API_KEY=your_google_api_key_here
   OPENROUTER_API_KEY=your_openrouter_api_key_here
   ANTHROPIC_API_KEY=your_anthropic_api_key_here
   OPENAI_API_KEY=your_openai_api_key_here

   # Optional: Web search capabilities
   EXA_API_KEY=your_exa_api_key_here


5. Start the development server

   npm run dev


6. Open your browser to http://localhost:3000

🔧 Configuration

AI Provider Setup

Choose from four supported AI providers:

Model Configuration (Optional)

Customize the models used for different tasks:

# Google Models
GOOGLE_FAST_MODEL=gemini-2.5-flash
GOOGLE_REASONING_MODEL=gemini-2.5-pro

# OpenRouter Models
OPENROUTER_FAST_MODEL=mistralai/devstral-small-2505:free
OPENROUTER_REASONING_MODEL=deepseek/deepseek-r1-0528:free

# Anthropic Models
ANTHROPIC_FAST_MODEL=claude-sonnet-4-20250514
ANTHROPIC_REASONING_MODEL=claude-opus-4-20250514

# OpenAI Models
OPENAI_FAST_MODEL=gpt-4o-mini
OPENAI_REASONING_MODEL=o3

🏗️ How It Works

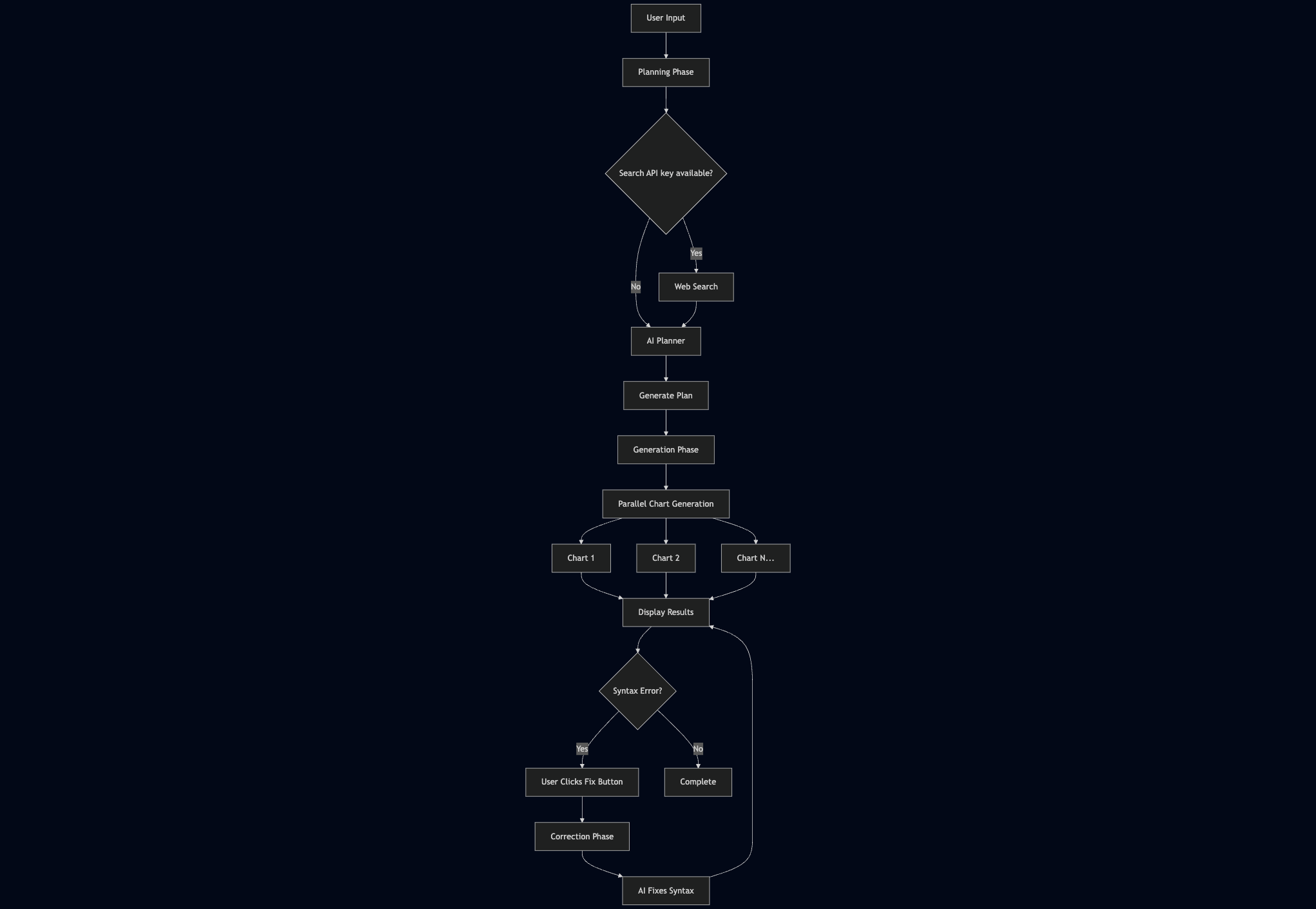

The application uses a sophisticated three-phase process:

Phase Details:

1. 📝 Planning Phase: AI analyzes your prompt and plans single or multiple diagrams
   • Optional web search integration via EXA API for enhanced context
   • Intelligent breakdown of complex prompts into multiple related charts
2. ⚡ Generation Phase: Fast AI models generate Mermaid syntax for each planned chart
   • Parallel processing for multiple charts
   • Real-time streaming of generated syntax
3. 🔍 Correction Phase: User-triggered syntax correction when needed
   • Manual activation via fix button when syntax errors occur
   • AI-powered error detection and correction

🛠️ Tech Stack

• Framework: Next.js 15 with App Router
• AI Integration: AI SDK v5 with multiple provider support
• Diagramming: Mermaid.js for interactive diagrams
• UI Components: shadcn/ui with Tailwind CSS
• Animations: Framer Motion for smooth transitions
• Validation: Zod for type-safe schemas
• Environment: @t3-oss/env-nextjs for validated environment variables
• Search: EXA API for web search integration

📦 Deployment

Deploy on Vercel (Recommended)

1. Fork this repository
2. Connect your fork to Vercel
3. Add your environment variables in the Vercel dashboard
4. Deploy automatically with every push

Other Platforms

This is a standard Next.js application and can be deployed on any platform that supports Node.js.

🧪 Development

# Start development server with hot reload
npm run dev

# Build for production
npm run build

# Run tests
npm run test

# Run linting
npm run lint

# Format code
npm run format

🤝 Contributing

We welcome contributions! Here's how you can help:

1. Fork the repository
2. Create a feature branch

   git checkout -b feature/your-feature-name


3. Make your changes
4. Add tests if applicable
5. Run linting and tests

   npm run lint
   npm run test


6. Commit your changes

   git commit -m 'feat: add some feature'


7. Push to your branch

   git push origin feature/your-feature-name


8. Open a Pull Request

Development Guidelines

• Follow the existing code style and conventions
• Write clear commit messages using conventional commits
• Add tests for new features
• Update documentation as needed

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

🙏 Acknowledgments

• Mermaid.js for the amazing diagramming library
• AI SDK for the powerful AI integration toolkit
• Vercel for the hosting platform and development tools
• shadcn/ui for the beautiful UI components

Made with ❤️ for the developer community
